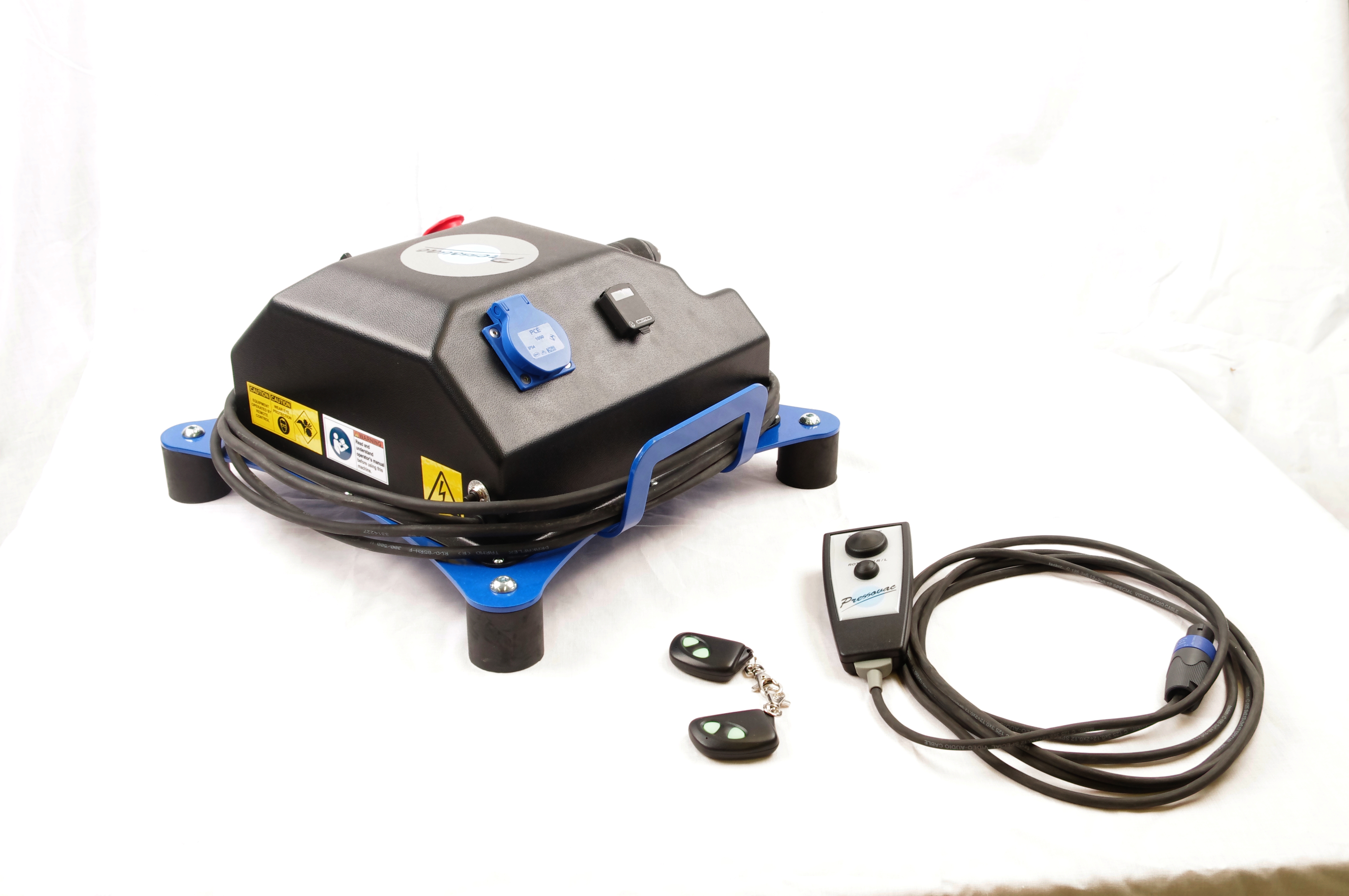

Ebox working Ebox 4    Ebox 3

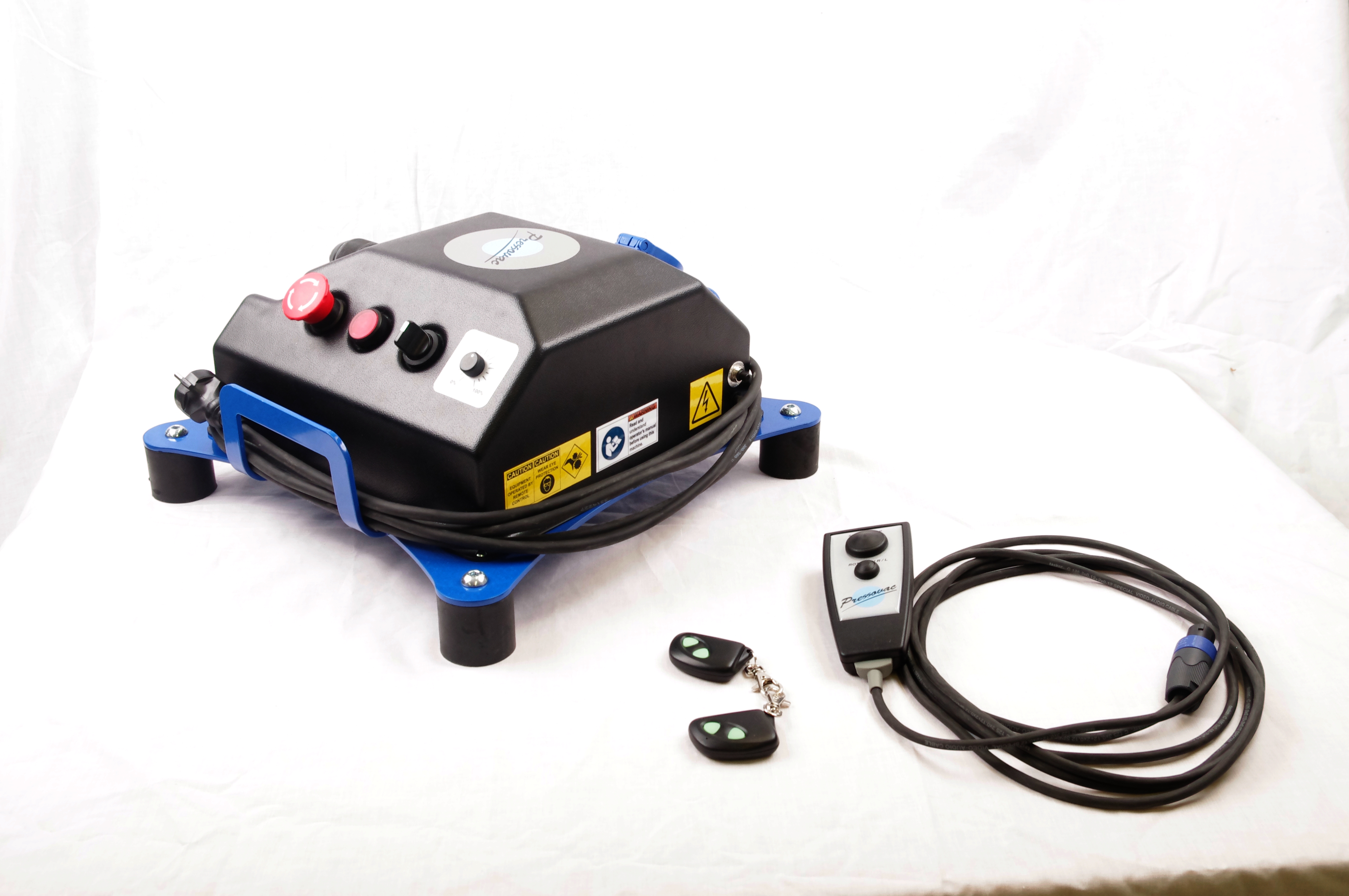

E-Box – Electronic brushing machine for flexible shafts

Compact, portable and lightweight

Overview

E-Box – Perfect solution for flexible shafts.

Designed for small and medium sized ducts up to Ø400mm.

Applications:

  • Cleaning of ducts of HVAC systems
  • Cleaning of flue gas systems
  • Cleaning of chimneys

Advantages:

  • Operated by just one person
  • Pedal, wired and wireless remote control options available
  • Compatible with mini-shafts or flexible and wire shafts up to 20 meters long
  • Adjustable stepless speed control (up to 1100 rpm)
  • Bi-directional rotation
  • Equipped with one 230 V power outlet
  • Portable and extremely lightweight (only 7,5kg)

Available with different remote options:

  • Wired remote control (4,0m cord)
  • Foot pedal remote control (5,0m cord)
  • Wireless remote control (2 pcs)



Technical data
  • Length400 mm
  • Width 390 mm
  • Height 215 mm
  • Weight only 7,5kg
  • Drill chuck Ø2 – Ø13mm
  • Max. Shaft length
    – 20 m (8mm shafts and steel wire shafts)
    – 9 m (Mini-Shafts)
  • Supply voltage 1~230VAC/10A fuse
  • Maximum power consumption:
    – Continuous 360W
    – Peak: 500W
  • Stepless rotation speed adjustment, 200 – 1100 rpm
Model options
E-Box + with wired remote control (4,0m) 201.003.001
E-Box + with pedal remote control (5,0m) 201.003.002
E-Box + with wired and wireless remote control 201.003.011
E-Box + with pedal and wireless remote control 201.003.012

    Electric E-20

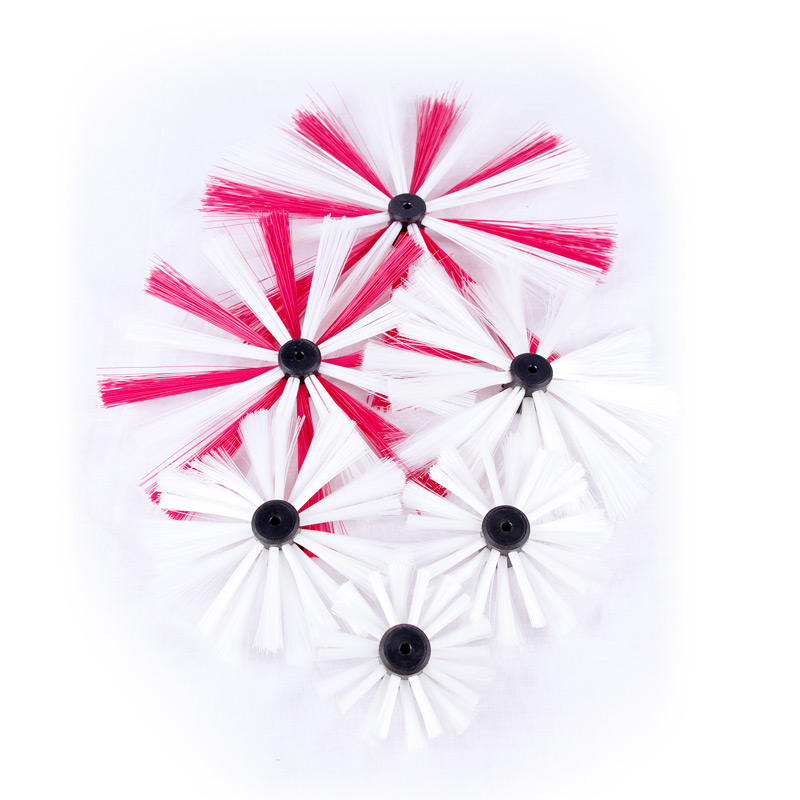

    brushes2

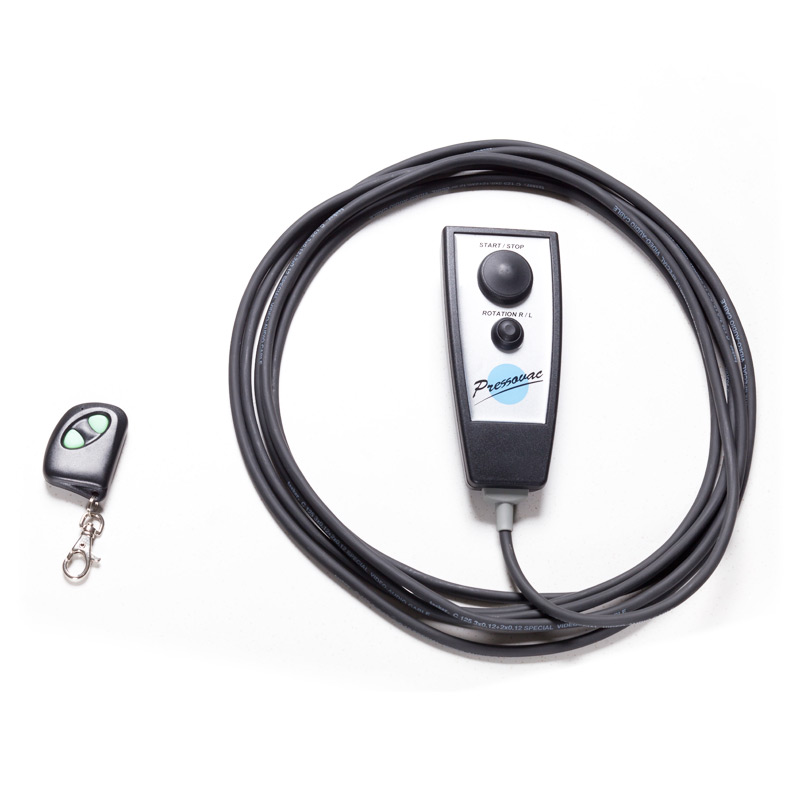

    kaukosaadin

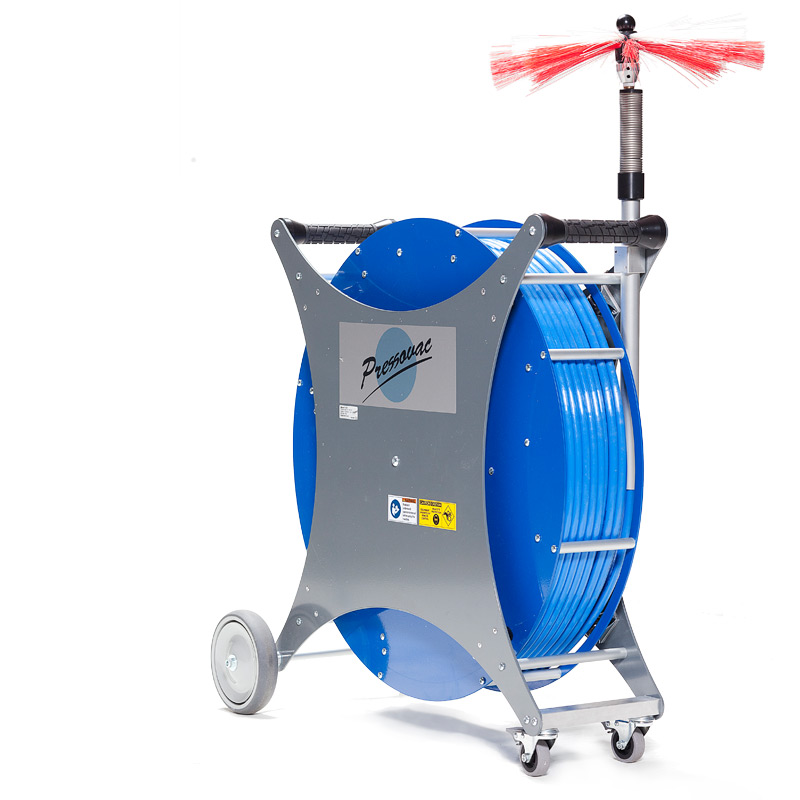

E-20 & E-30

Electronic Brushing Machines, lengths 20 & 30m

Overview

Small electric brushing machines with a powerful EC-motor. Excellent for cleaning ducts with a diameters of 100-400 millimetres.

  • Weight only 30 / 36 kg
  • Shaft lengths 20 / 30 meters
  • Supply Voltage 230V (50/60Hz) (10A Fuse)
  • Small and versatile
Technical Data
Reel Diameter 650mm
Length 700mm
Depth 365mm
Height 710mm
Weight 30kg (E-20) / 36kg (E-30)
Shaft Length 20m/30m (∅ 8mm)
Supply Voltage 1~230VAC / 10A fuse
Max Power Consumption 2.5A/@230VAC
Rotation Speed Stepless ~200 – 1100rpm
More info and Accessories

The E-20 brushing device is perfect for small ducts. It is very easy to use and move because of its small size and turning front wheels. Due to used materials and carefully selected components it is also very light to handle. The weight of the whole equipment in operating condition is only 30 kilograms.

The equipment is designed to be user-friendly. Standard features include: stepless speed control, wired remote control (optional wireless controller) and selection of rota- tion direction. These operational and physical features make the E-20 a multipurpose device.

Product Product Code
E-20 – Electric Brushing Machine (20m) + wired remote controls (4m) 201.002.003
E-20 Electric Brushing Machine (20m) + wired and wireless remote controls 201.002.011
E-30 Electric Brushing Machine (30m) + wired and wireless remote controls 201.002.014
Brush set E-20/E-30 (6 pcs, Ø100 – Ø315mm), Soft 211.012.001
Brush set E-20/E-30 (6 pcs, Ø100 – Ø315mm), Hard 211.013.001
Supporting / Centering plate set for E-20/E-30 (4 pcs, Ø150 – Ø350mm) 212.001.004

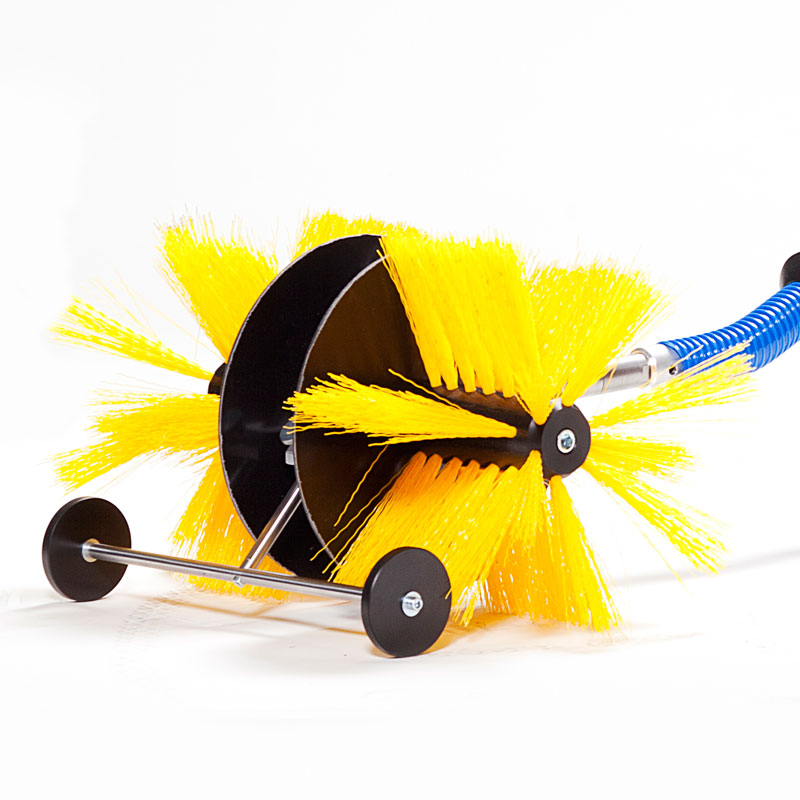

    dis-nozzle

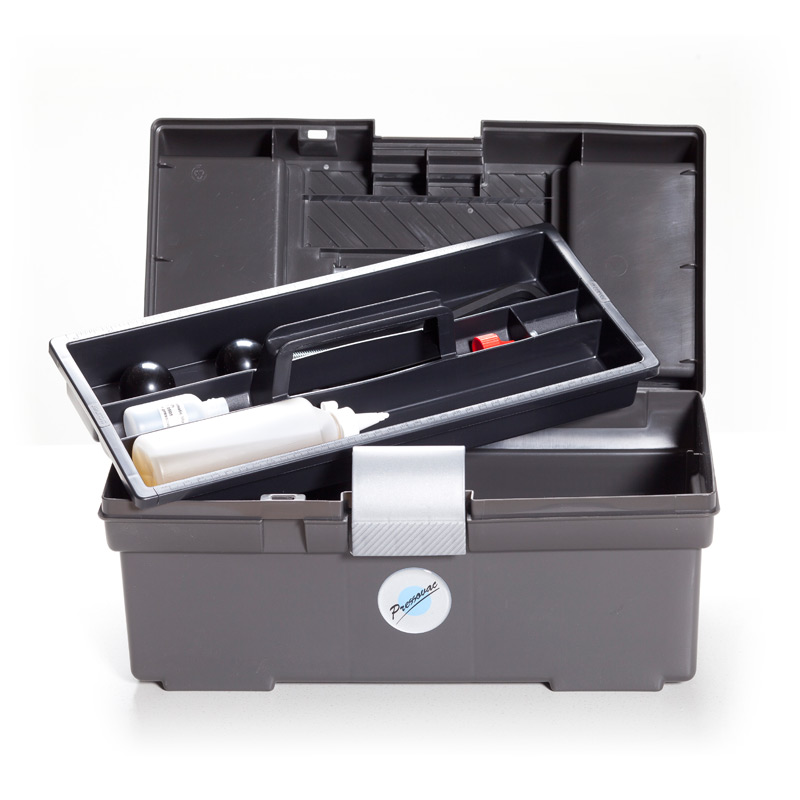

    tyokalupakki

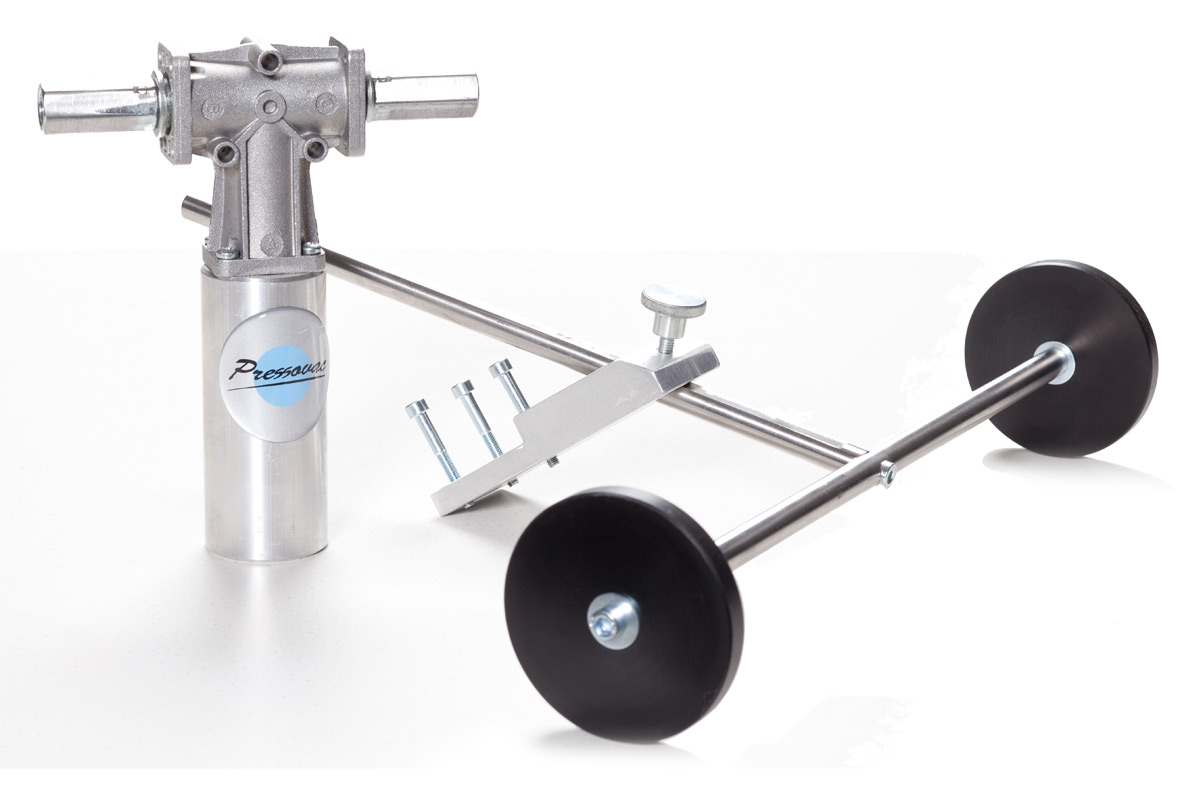

    t-liitin

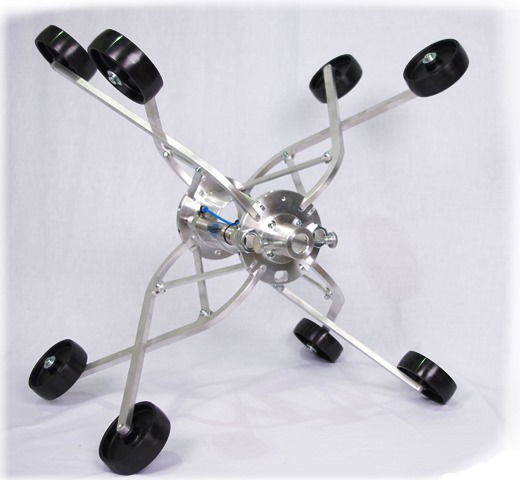

    Centring device

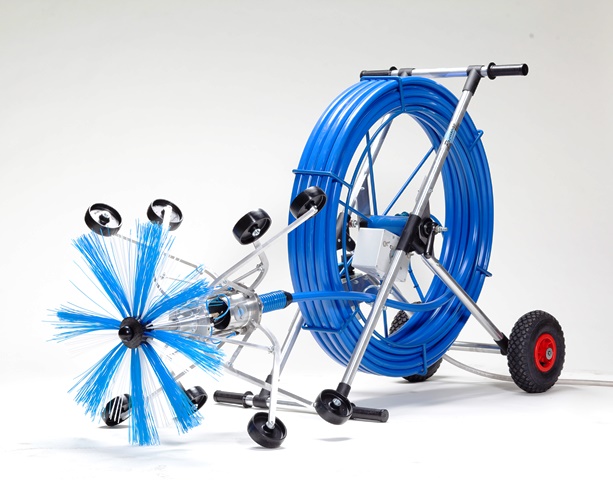

    P40 + Centring device

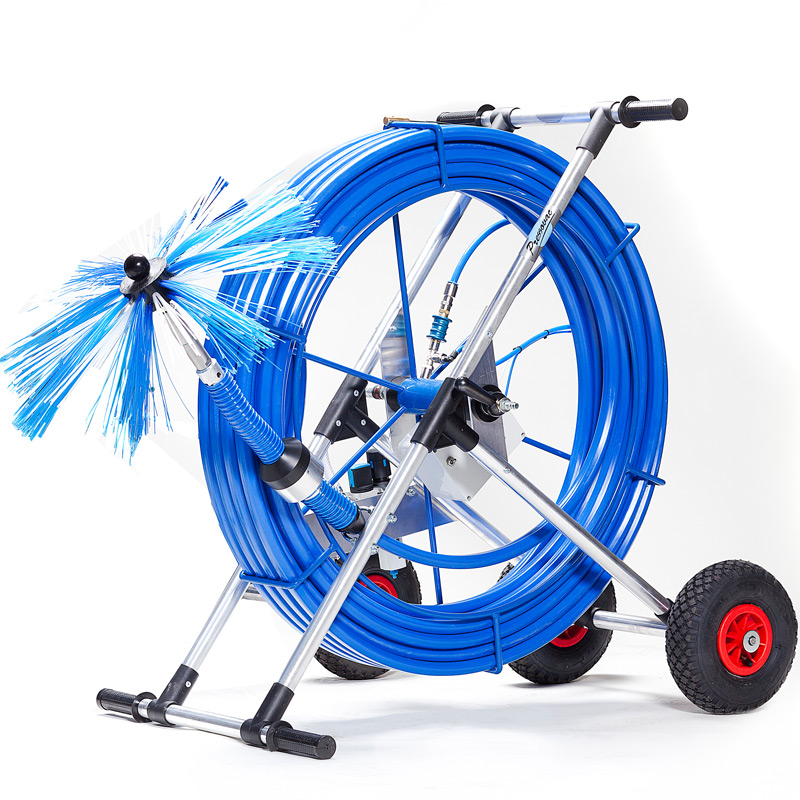

P-25 & P-40

Pneumatic Brushing Machines

Overview

The pneumatic Pressovac Brushing reel units are designed for large and medium-sized air ducts. Suitable for round ducts Ø315- Ø1200mm and rectangular ducts height up to 500mm

  • Lengths 25 meters & 40 meters
  • 2-directional powerful motor
  • Aluminum frame
  • Lots of optional accessories
Technical Data
Device P-25 P-40
Dimensions (L x H x W) cm 100 x 100 x 60 100 x 100 x 60
Weight (kg) 30 40
Cable length 25 m 40 m
Motor Bi-directional pneumatic motor Bi-directional pneumatic motor
Other Pressure gauge, pressure adapter, condensate drain, control valves Pressure gauge, pressure adapter, condensate drain, control valves
Accessories T-adapter, pneumatic centring device, automatic direction change, remote starter, disinfection equipment T-adapter, pneumatic centring device, automatic direction change, remote starter, disinfection equipment
Product code 201.001.001 201.001.002
Accessories
Device Product code
The brushing motor 202.001.001
Automatic direction change P25 & P40 202.002.001
Wireless remote starter P25 & P40 203.001.001
T-adapter + support wheel mechanism 204.001.001 & 204.001.002
Pneumatic brush centring device 204.001.003
