Filter Units

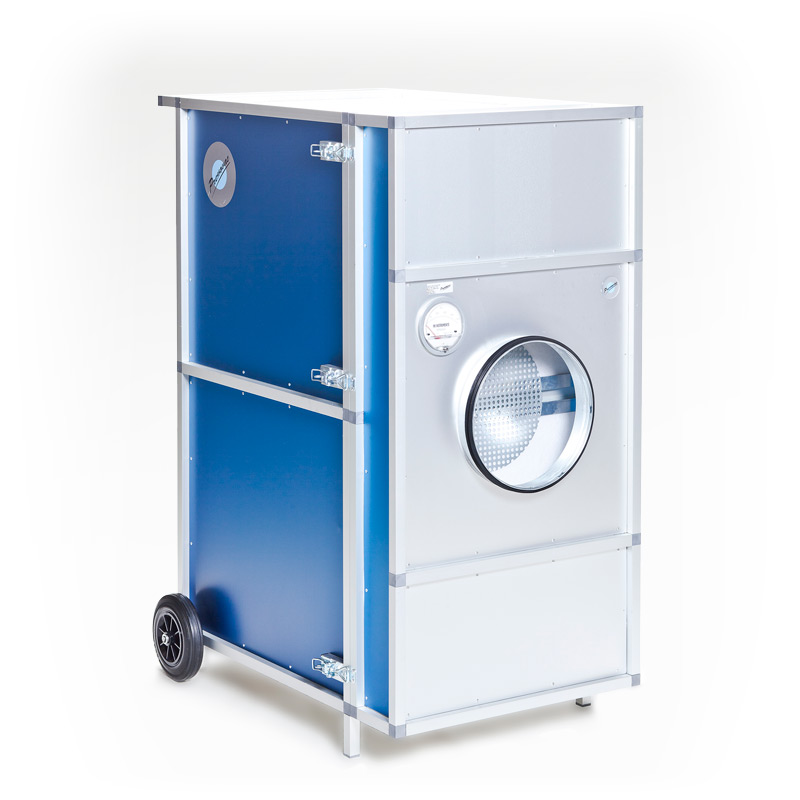

Filter unit Mini is designed to use with 0.75kW, 1.5kW and 2.2kW air suction units. Two stage filtering system using G3 filter as pre-filter and F7 filter as the main filter. Maximum filtration is 5000 m³/h.

• Max. airflow: 4,300 m3/h
• Pre-filter: G3 (592 x 592 x 15)
• Main filter: F7 Bag filter (592 x 592 x 600)
• Inlet connection: Ø160 – Ø315
• Outlet connection: Ø400
• Weight: 30 kg
• Dimensions (H x W x L): 750 x 650 x 900 mm
• Pressure gauge for monitoring filter condition
• Also available with HEPA or activated carbon filters
• Plastic film tube as the outlet hose
• Product code: 207.001.001

Filter unit Maxi is designed to use with 2.2kW, 4,0kW and 7,5kW suction units. Two stage filtering system using G3 filter as pre-filter and F7 filter as the main filter. Maximum filtration is 10000 m³/h.

• Max. airflow: 8,600 m3/h
• Pre-filter: 2 x G3 (592 x 592 x 15)
• Main filter: 2 x F7 Bag filter (592 x 592 x 600)
• Inlet connection: Ø250 – Ø315
• Outlet connection: Ø500
• Weight: 45 kg
• Dimensions (H x W x L): 1,375 x 650 x 900 mm
• Pressure gauge for monitoring filter’s condition
• Also available with HEPA or activated carbon filters
• Plastic film tube as the outlet hose
• Product code: 207.001.002
