Kuvauslaitteet

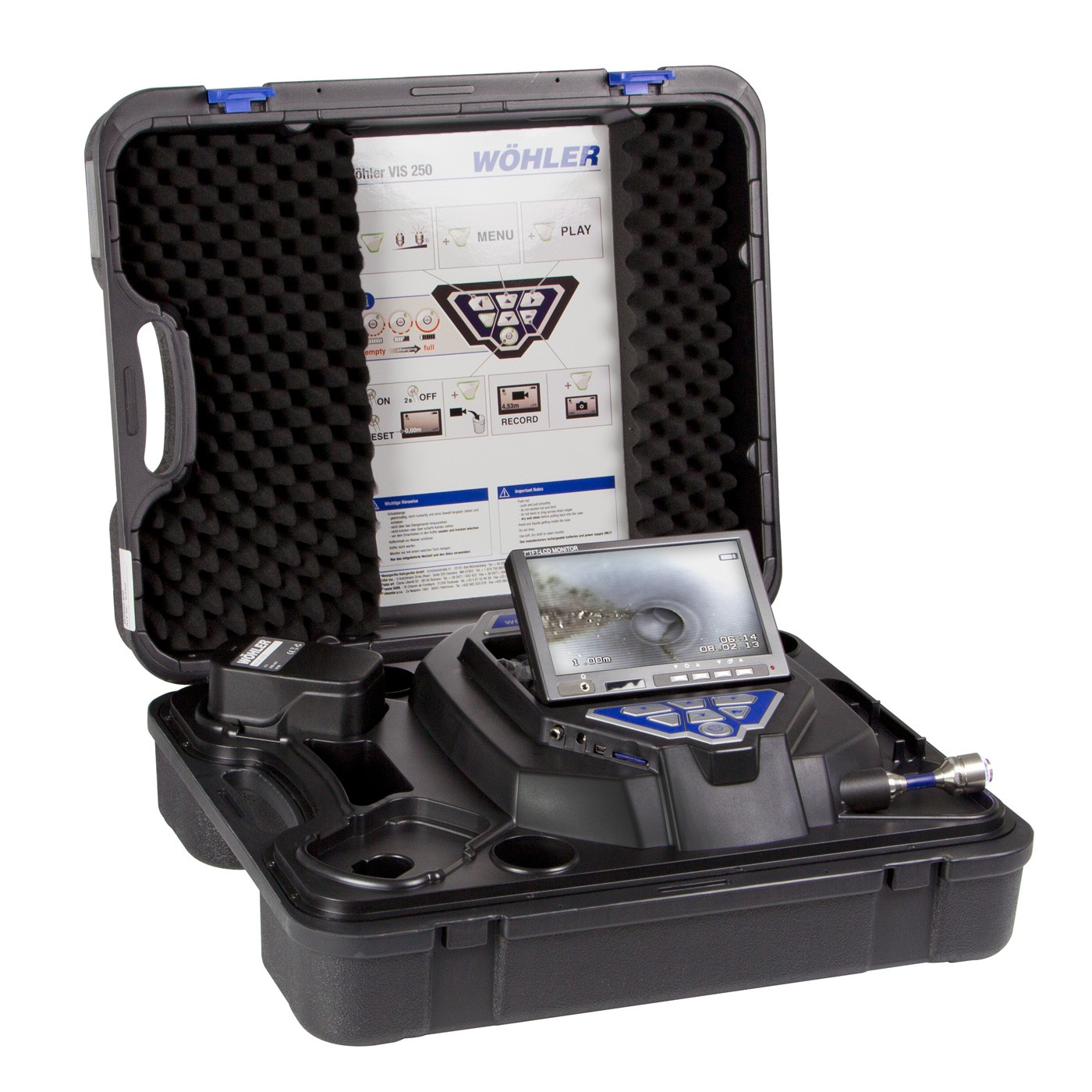

• Pan- & tiltable color camera head (camera head diameter ø40mm)
• Detachable color camera head, also smaller camera head (diameter ø26mm ) can be installed
• 7” Super bright TFT color monitor & 2m connection cable (removable monitor)
• Built in recorder, with 2GB SD memory card
• 30m Pushrod, pushrod diameter ø6,5mm
• Digital meter counter
• Position and angle display
• integrated locator transmitter
• 5 plastic domes for camera protection
• 1 anti-slide mat
• Dual rechargeable 12V batteries
• All gadgets in heavy duty carrying case

Monitor

• Housing size: 173 x 114 x 32mm
• TFT size: 7″/ 16:9 format
• Video out: FBAS
• Weight: 400g
• Power Supply: 2 x rechargeable batteries 12 V/2,6 Ah
• Operating time: approx. 120 min. per battery

Mini P&T Color Camera Head

• Sensor type: 1/3″ COLOR CMOS
• Sensitivity: 0.5 Lux
• Lens system: f =2,31mm, F =2.4
• Field of view: 120°
• Light source: 12 super-bright white LEDs
• Protection: waterproof IP 67
• Camera size: Ø 40mm x 60mm
• Length: 30m, Distance indicated push rod

Case

• Size: 51 x 43 x 17 cm ( L x W x H )
• Weight: 8.2kg

Digital Recording

• Recording: 2 GB SD-Card (2.5 h recording)
• Interface: Mini USB-Adapter

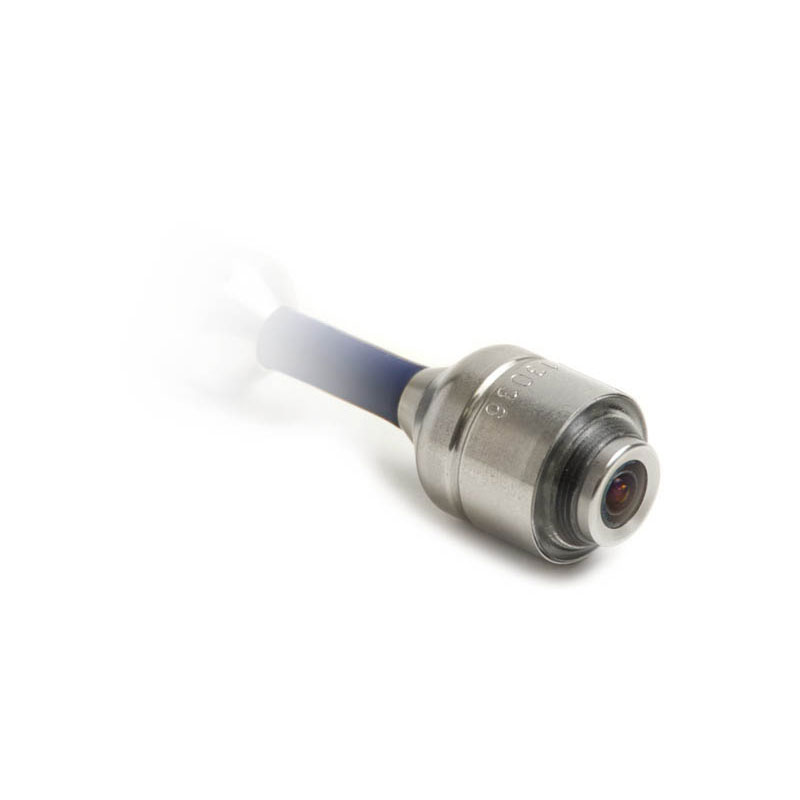

• Waterproof and flexible camera head diameter of ø26mm. Waterproof up to 3bar / 30m
• 7” Super bright TFT color monitor & 2m connection cable (removable monitor)
• 30m Pushrod, Flexible glass-fibre reinforced pushrod diameter of ø6,5mm
• Built in recorder, with 2GB SD memory card
• Metric marks on the push rod
• Digital meter counter
• Position and angle display
• integrated locator transmitter
• 1 anti-slide mat
•  1 x rechargeable battery (12 V/2.6 Ah)
• All gadgets in heavy duty carrying case

Monitor

• Housing size: 173 x 114 x 32mm
• TFT size: 7″/ 16:9 format
• Video out: FBAS
• Weight: 400g
• Power Supply: 1 x rechargeable batteries (12 V/2.6 Ah)
• Operating time: approx. 120 min

Mini Color Camera Head

• Sensor type: 1/3″ COLOR CMOS
• Sensitivity: 0.5 Lux
• Lens system: f = 2,3mm, F = 1,2
• Field of view: 120°
• Light source: 12 super-bright white LEDs
• Protection: waterproof IP 68
• Camera size: Ø 26mm x 38mm
• Length: 30m, Distance indicated push rod

Case

• Size: 51 x 43 x 17 cm ( L x W x H )
• Weight: 7kg

Kamerapäät

Kamerapäiden tarvikkeet

Kameraohjurit

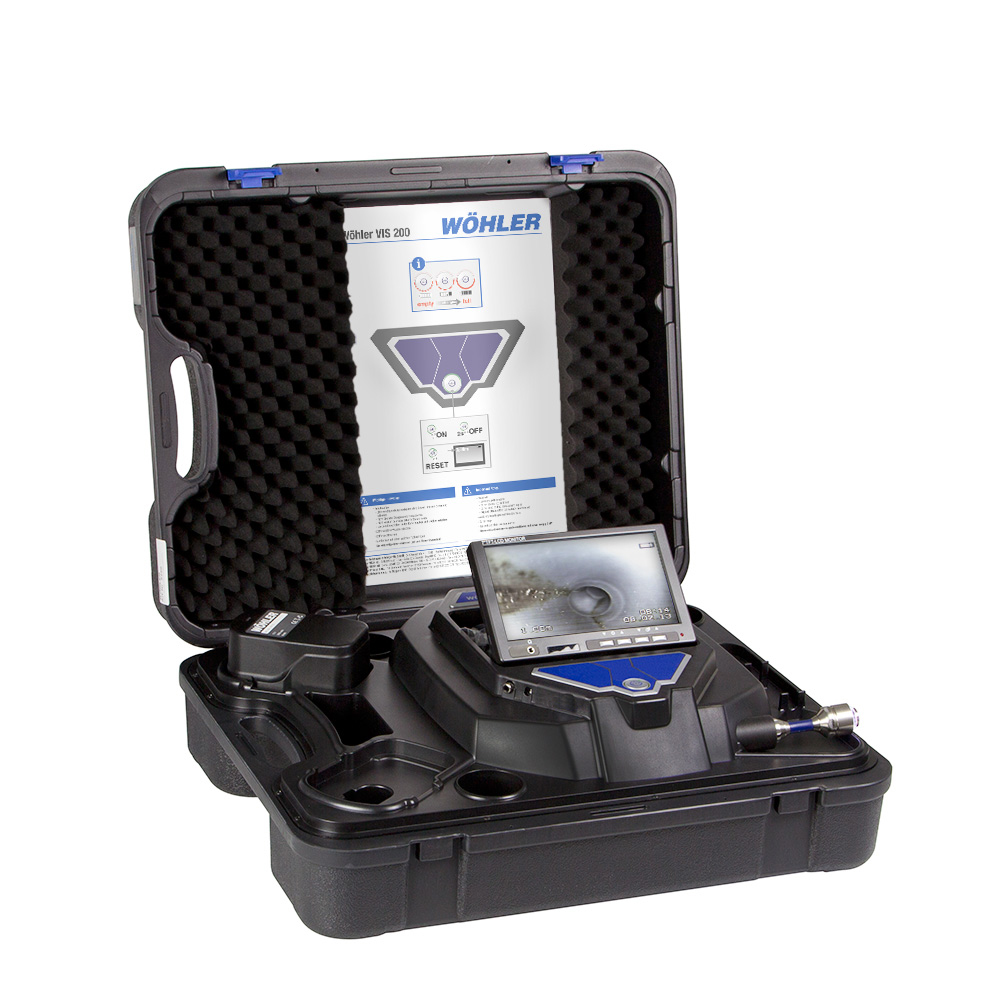

• Vedenpitävä värikamerapää ø26mm. Vesitiivis 3bar / 30m
• 7” kirkas TFT värinäyttö & 2m liitosjohto (näyttö liikutettavissa 2m alueelle salkusta)
• 20m työntövarsi, halkaisija ø6,0mm
• Etäisyysmittari näytössä
• Sisäänrakennettu lähetin L200-kamerapaikantimelle
• 1 luistonestomatto
• 1 kpl 12V akkuja (1 x 2,6 Ah)
• Kaikki laitteet tukevassa kantosalkussa

Perustiedot

• Näytön koko: 173 x 114 x 32mm
• TFT -näytön koko: 7″/ 16:9 formaatti
• Video out: FBAS
• Paino: 400g
• Virtalähde: 1 x ladattava akku 12 V/2,6 Ah
• Käyttöaika n. 120 min.

Minikamerapää

• Sensori: 1/3″ COLOR CMOS
• Herkkyys: 0.5 Lux
• Linssi: f = 2,3mm, F = 1,2
• Katselukulma: 120°
• Valaistus: 12 kpl erittäin kirkkaita valkoisia LED-valoja
• Suojausluokka: IP 68
• Kameran koko: Ø 26mm x 38mm
• Pituus: 20m, etäisyysmittari näytössä

Salkku

• Koko: 51 x 43 x 17 cm ( L x W x H )
• Paino: 7kg

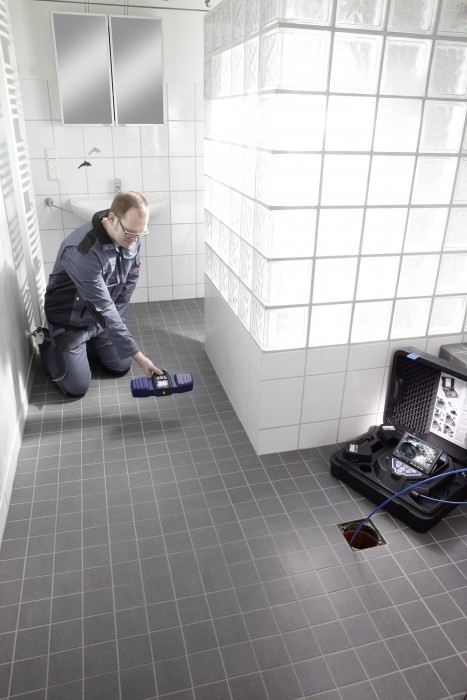

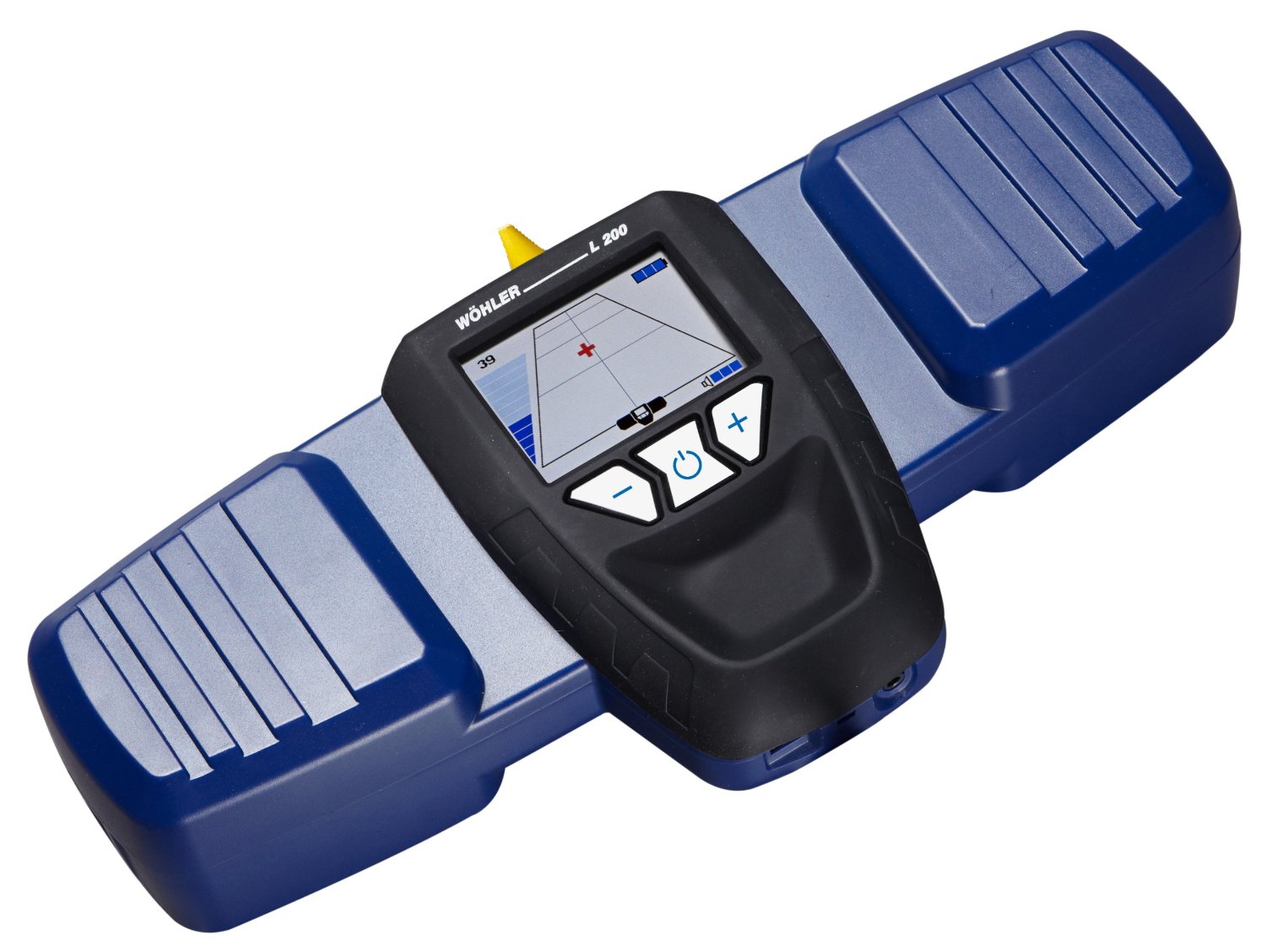

• Penetrating views through concrete and asphalt
• Locates radio signals transmitted by the camera head – rapidly pinpoints damage

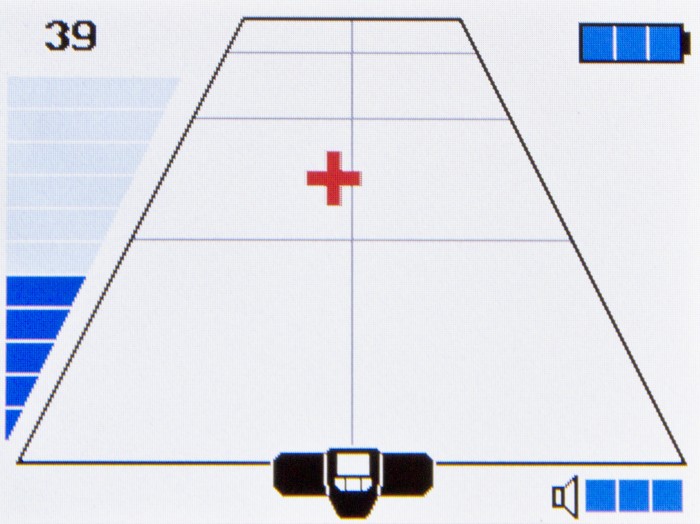

• Easy to handle – user guided via display throughout the locating process
• Bright, easy-to-read color display
• Telescopic pole – easily track down damage anywhere
• Chalk holder – for chalk to mark the position where damage is found
• Suitable for VIS250 & VIS350

Details

• Power Supply: 3.7 V Lithium Ion Rechargeable Battery
• Battery Life: 24 Hours
• Charging Time: 2.5 Hours
• Degree of Protection: IP 40

Case

• Size: 31 x 14 x 7 cm ( L x W x H )
• Weight: 605 g
