SFU-10 Suction/Filter Unit

230VAC / 1000m3/h

Overview

Novelty from Pressovac – SFU-10

  • A very compact and lightweight suction/filter unit combination for apartment / household cleaning.
  • Can be used also as an air purifier
  • Designed to be operated and manouvered by a single person
  • Weight only 23,5kg
  • G3-G5 Pre-Filter + M5-H13 Main filter
Techical Data
Technical Data – SFU-10
Max. Airflow 1000m3/h
Max. Pressure 800Pa
Inlet Connection Ø160mm
Outlet Connection Ø160mm
Weight 23,5 kg
Dimensions (LxWxH) 1120 x 458 x 560 mm
Power outlet 1 x integrated socket 1 – 230VAC
Supply 1-phase, 230VAC / 10A
Frequency 50Hz
Pre-Filter G3-G5
Main Filter M5-F9 bag filter, H13 Compact Filter
Product Code 206.003.010

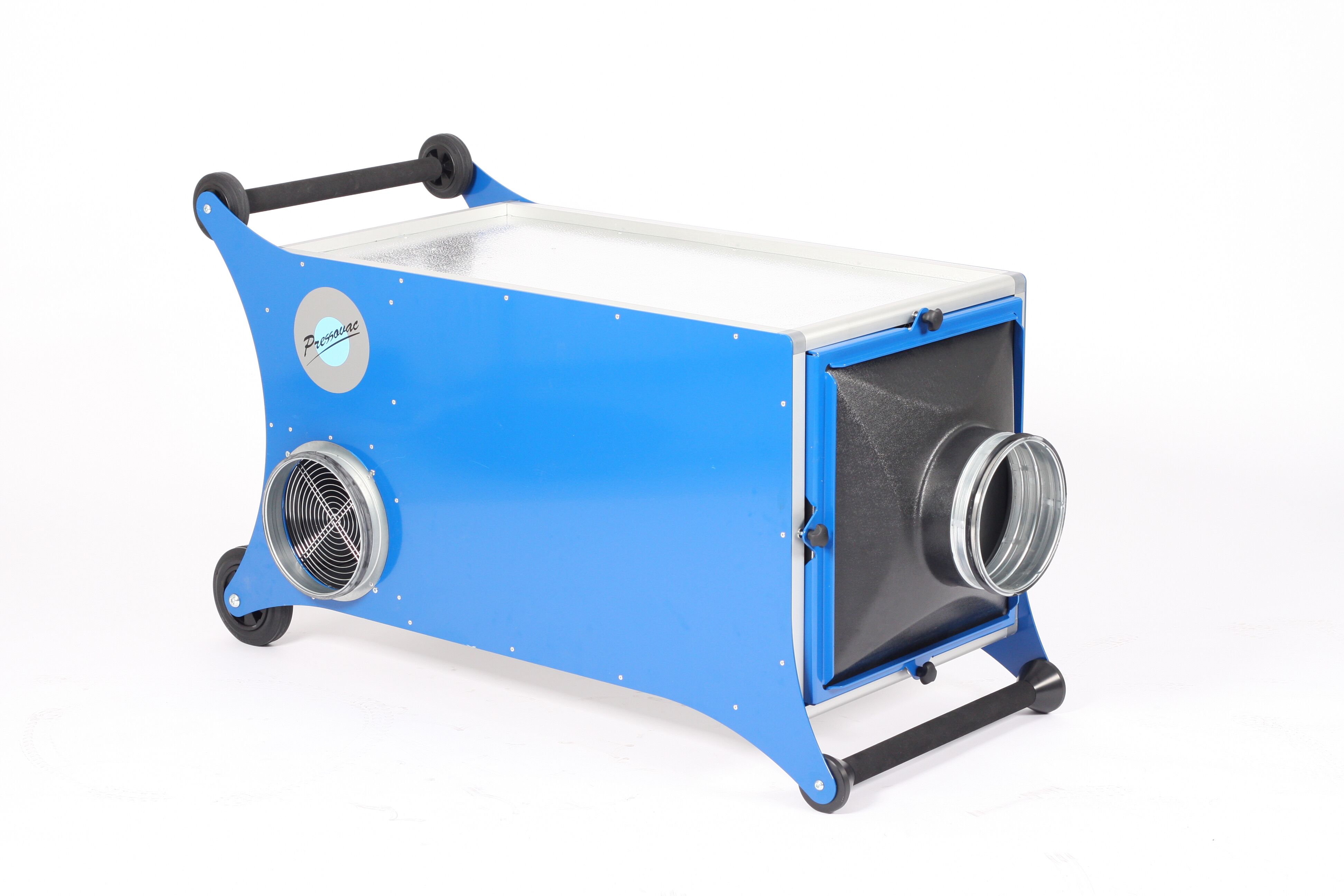

SFU-25 Vacuum-Filter Unit

Overview

Novelty from Pressovac – SFU-25;

  • A very compact and lightweight vacuum-filter unit combination for apartment / household cleaning.
  • Can be used also as an air purifier
  • Designed to be operated and manouvered by a single person
  • Weight only 34kg
  • G3-G5 Pre-Filter + F7 Main filter
Technical Data
Technical Data – SFU-25
Max. Airflow 2500m3/h
Max. Pressure 1050Pa
Inlet Connection Ø200mm
Outlet Connection Ø200mm
Weight 34 kg
Dimensions (LxWxH) 118 x 560 x 710 mm
Power outlet
Supply 1-phase, 230VAC / 10A
Frequency 50-60Hz
Pre-Filter G3-G5
Main Filter F7 bag filter
Product Code 206.003.011

    SFU-50 2 SFU-50 3 SFU-50 4

SFU-50, Suction / Filter unit

230 VAC / 4500m3/h

Overview
Suction unit and Filter unit combined into new compact size product. Low power consumption and high efficiency motor. Low noise level – comfortable to use. Adjustable fan speed control enables variable use from small to medium ducts. Can be used also for construction and renovation sites for dust control.

Build in “soft start”

  • Adjustable fan speed (Power)
    • Max. airflow over 4500 m3h
    • Max.pressure: 1200 Pa
    • Electrical connection: 230V / 10A fuse
    • Hose connection: Ø 315 mm

Filters

  • Pre-Filter: G3 – G5 (592 x 490 x 15)
    • Main Filter: F7 – F9 Compact (592 x 490 x 292)
    • Also available with HEPA H11-H13 or active carbon tilters
    • Dimensions (W х H х L): 612 х 874 х 1182 мм
Technical Data

Technical data

  • Model: SFU-50
    • Motor: 1,4 kW, 50/60Hz
    • Supply: 230 В / 10A
    • I-max(A) – 6 А
    • Weight: 60 kg
